160-200KG/PP woven bags / PE film single -stageplastic recycling machine 120
Provide a variety of machine capacity. Please consult relevant details before ordering the machine. The following information is for reference only.
- Commodity name： 160-200KG/PP woven bags / PE film single -stageplastic recycling machine 120
Product Description
Machine details

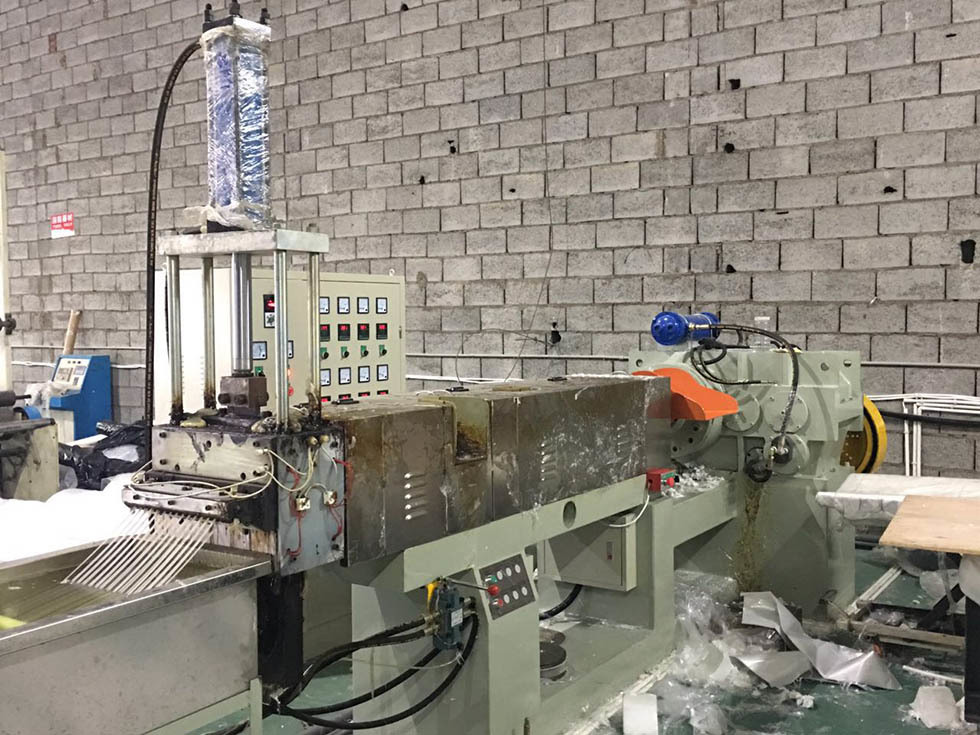

PE FILM / PP WOVEN BAGS SINGLE-STAGE PLASTIC RECYCLING MACHINE | ||
Number | Product | Remark |
| Main extruder | ||
3 | Screw and Barrel | Screw diameter:120 mm Barrel length: 2600mm Screw material: 38CrMoAIA nitrogen treatment and three parts alloy powder spray-spread Barrel material: 38CrMoAIA nitrogen treatment and the feeding chamber opening of the barrel with alloy powder spray-spread |
4 | Gear Box | Model: 315 |
5 | Motor | Motor power: 55KW-4P Speed controlled by Delta(350V-480V,50HZ-60HZ) inverter |
6 | Control Box | 8 sets Controller Brand: SKG Contactor Brand:LS Speed controlled by Delta(350V-480V,50HZ-60HZ) inverter |
7 | Die Head | Hydraulic double plates Screen size: 250mm Screen sieve changer by hydraulic controlling system |

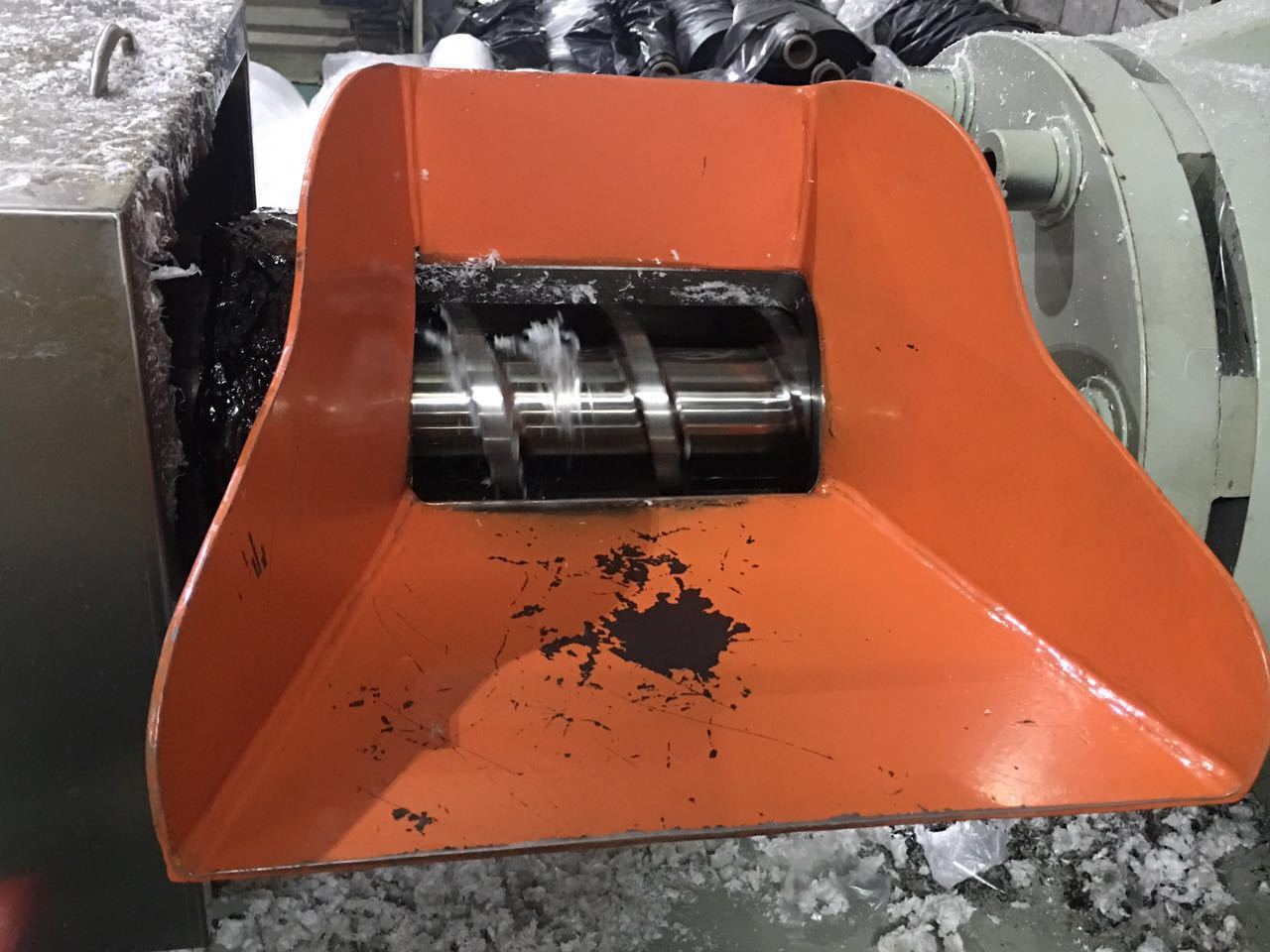

8 | Feeder | Bevel feeding |
Auxiliary part | ||
15 | Water tank | 3500mm Material: stainless steel |
16 | Dryer | One set Motor power:2.2KW |
17 | Cutter | Type 300PLUS Motor power: 5.5KW Contactor Brand:LS Speed controlled by Delta(350V-480V,50HZ-60HZ) inverter |
18 | Blower | Motor power: 3KW |
19 | Silo | Capacity：250KG Material: stainless steel |
20 | Output | 160kg-200kg/hr |
Payment terms
- 30% deposit by T/T
- 70% by T/T before delivery and after inspection
Delivery time
40-45 working days since the date of receiving deposit
Warranty period
12 months since date of bill of lading
Laite Brothers Plastic Machinery CO., LTD will charge the buyer cost of spare beyond one year and provide long-term technical guide
Our product range includes: Plastic Recycling Pelletizers for Crosslinked PE Foam/EVA Foam waste, EVA shoe soles waste, PVC waste and other plastics waste, Agglomerators for EVA, PVC,TPR, Crusher and Blenders.
